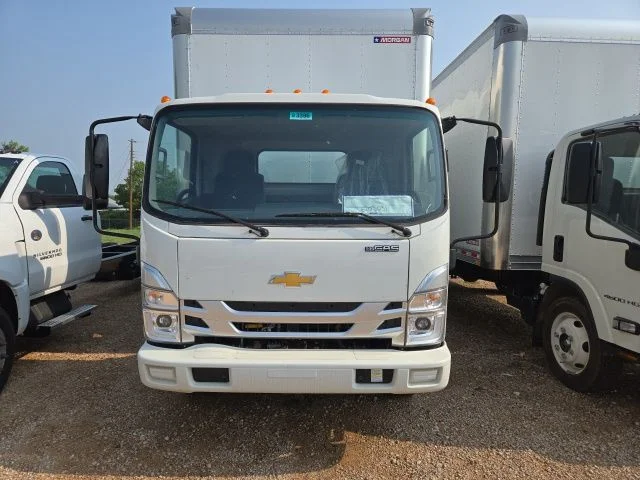

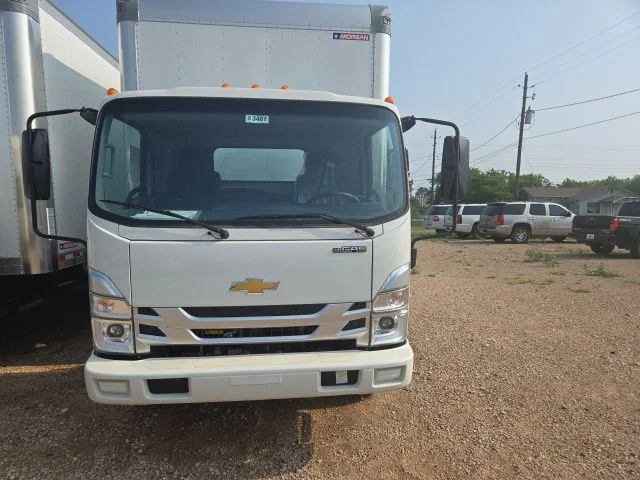

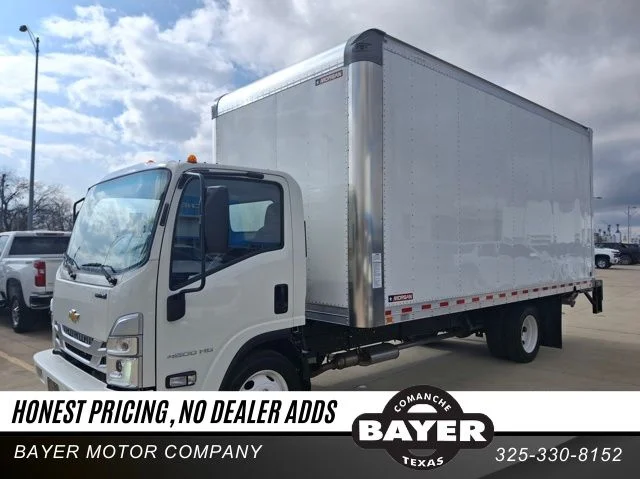

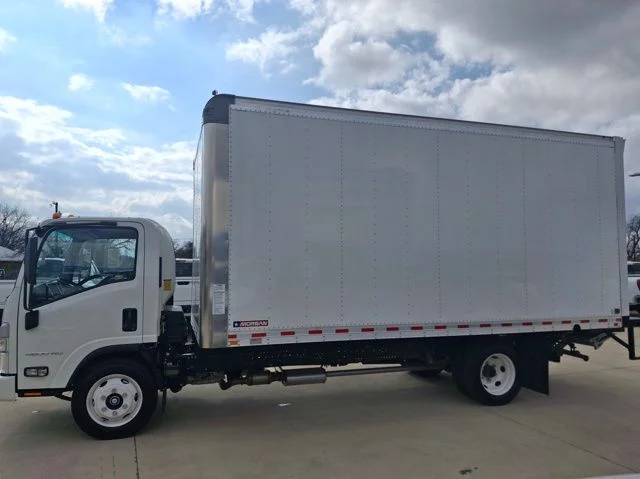

New 2025 Chevrolet 4500 HG LCF Gas wt RWD 2D Standard Cab
- VIN: 54DCDW1D6SS203032
- Stock: 53259
New 2025 2025 Chevrolet 4500 HG LCF Gas wt
VIN: 54DCDW1D6SS203032STOCK: 53259Basic Info
-
Stock:53259
-
VIN:54DCDW1D6SS203032
-
Exterior:White
-
Drivetrain:RWD
-
Interior:Gray
-

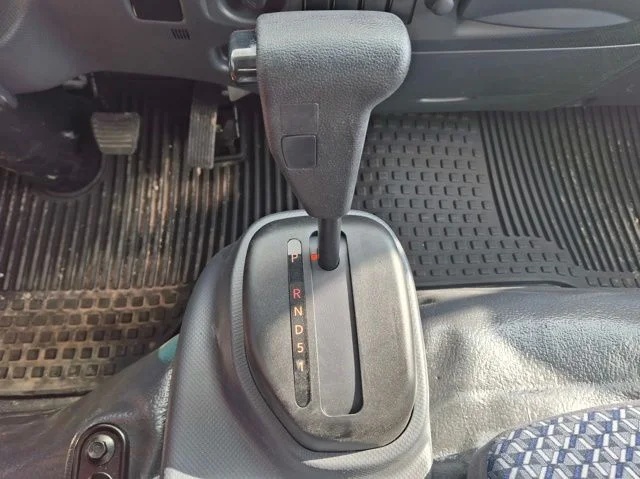

Transmission:8-Speed Automatic
-
Engine:6.6L V8
Key Features
-
Bluetooth
Description
Vehicle Details
Exterior

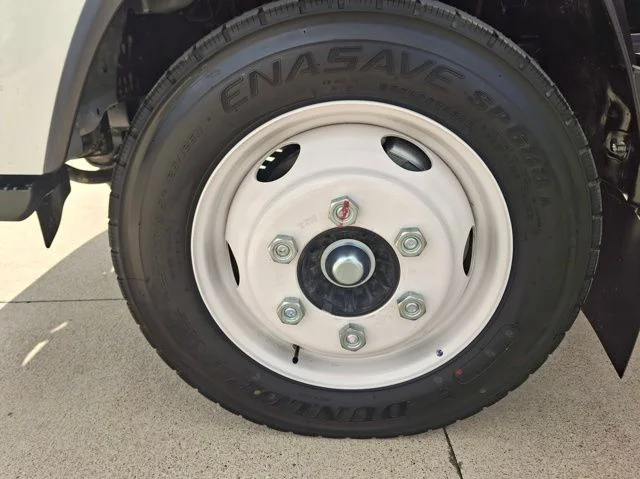

- Tires, front, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Tires, rear, 225/70R19.5 G, LRR (low rolling resistance) tubeless steel belted radial, all-season
- Assist steps
- LED Headlamps
- Grille, Silver
- Glass, tinted
- Mirror, outside left-hand and right-hand with integral convex mirrors
- Windshield wiper, pulse, wet arm
Interior
- Cup holders
- Floor mats

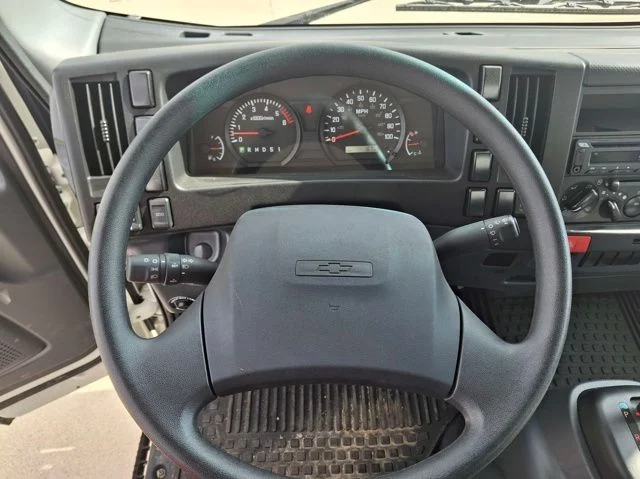

- Steering wheel, urethane
- Steering column, Tilt-Wheel
- Driver Information Center
- Windows, power

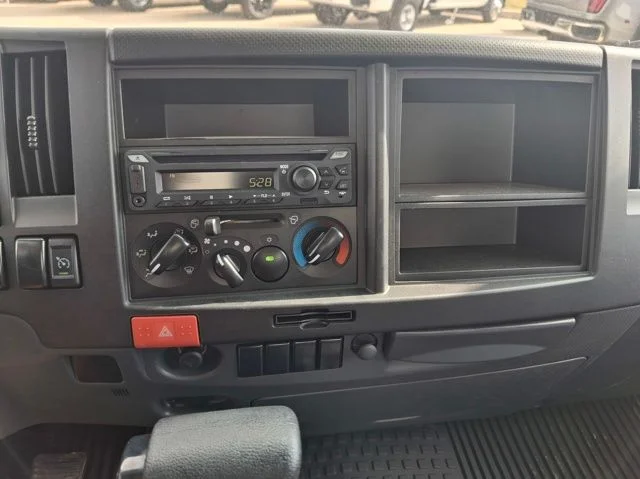

- Air conditioning, single-zone manual, integral in-dash mounted
- Windshield washer bottle access on passenger side dash when passenger-side door is open

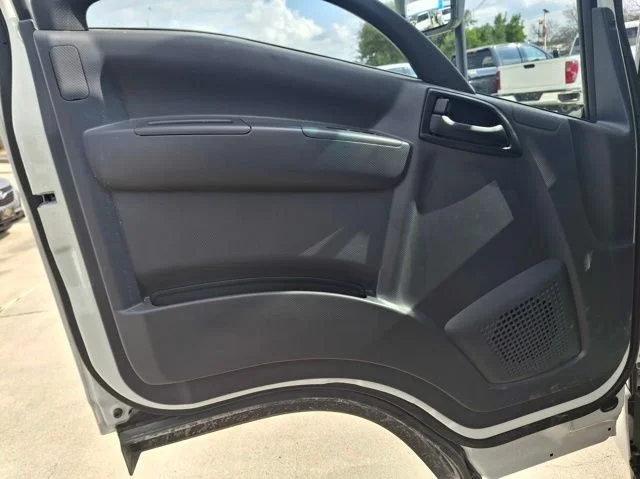

- Storage, door pockets
- Lighting, interior dome
- Storage, seatback pockets
Entertainment
- Audio system feature, 2 speakers
Mechanical
- Engine, 6.6L V8 SIDI, GMPT-V8 8 cylinder V Iron block, four cycle overhead valve water cooled 6.6L SIDI V8 350 hp [261 kW] @ 4500 rpm, 425 lb.-ft of torque [575.8 N-m] @ 3800 rpm. Electronically controlled direct fuel injection. Six bolt main cap design for heavy-duty performance. Engine Control Module (ECM) and Transmission Control Module (TCM) engine control system. Engine cruise control, engine oil cooler, High Idle Mode (1200 rpm).
- Rear axle, 4.10 ratio
- Drivetrain, rear-wheel drive
- Battery, 750 cold-cranking amps, 12-volt single, maintenance free, frame-mounted battery box
- Frame, ladder-type channel frame. Full C section straight frame 33.5" (85.1 cm) wide. Yield strength 44,000 psi, section modulus 7.20 cu.in. and RBM 316,800 lb-ft/in per rail.
- Incomplete vehicle certification
- Wheelbase, 176" (447.0 cm)
- GVWR, 14,500 lbs. (6577 kg)
- Rear suspension, 12,900 lbs. (5851 kg), multi-leaf, semi-elliptical steel alloy. Includes shock absorbers
- Front axle, 6,830 lbs. (3098 kg), reverse Elliot "I"-beam includes integral hydraulic power steering, with an 18.8-20.9:1 gear ratio
- Brakes, 4-wheel antilock, front and rear disc
- Vehicle Application Truck
- Fuel tank, 38.6 Gallon, (146L), rectangular fuel tank mounted between frame rail with electric type fuel pump (mounted in tank). Through the rail fuel fill.
- Exhaust, single outlet
Safety
- Brake, parking, cable actuated, internal expanding drum type, transmission-mounted
- Daytime Running Lamps
Tech Specs
- Vehicle Name: Chevrolet 4500 HG LCF Gas
- Body Style: Regular Cab Chassis Cab
- Body Code:
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 3
- Number of Passenger Doors: 2

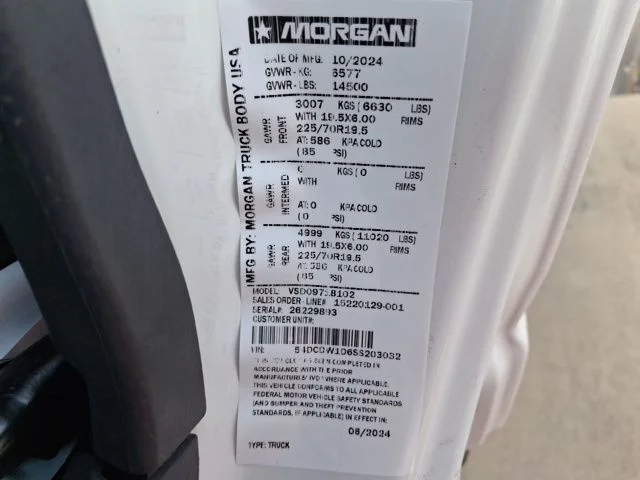

- Gross Axle Wt Rating - Front: 6630
- Gross Axle Wt Rating - Rear: 11020
- Curb Weight - Front: 3753
- Curb Weight - Rear: 2230
- Gross Vehicle Weight Rating Cap: 14500
- Gross Combined Wt Rating: 20500
- Engine Order Code: L8T
- Engine Type: Gas V8
- Displacement: 6.6L/- TBD -
- Fuel System: Direct Fuel Injection
- SAE Net Horsepower @ RPM: 350 @ 4500
- SAE Net Torque @ RPM: 425 @ 3800
- Trans Order Code: N8X
- Trans Type: 8
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): - TBD -
- Second Gear Ratio (:1): - TBD -
- Third Gear Ratio (:1): - TBD -
- Fourth Gear Ratio (:1): - TBD -
- Fifth Gear Ratio (:1): - TBD -
- Sixth Gear Ratio (:1): - TBD -
- Reverse Ratio (:1): - TBD -
- Clutch Size:
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 750
- Cold Cranking Amps @ 0° F (2nd):
- Cold Cranking Amps @ 0° F (3rd):
- Maximum Alternator Capacity (amps): 170
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity: - TBD -
- Engine Oil Cooler: Yes
- Frame Type: Ladder-Type Channel-Section
- Sect Modulus Rails Only: 7.20
- Frame RBM: 316800
- Frame Strength: 44000
- Frame Thickness: 8.50 X 2.76 X 0.24
- Suspension Type - Front: Semi-Elliptical Multi-Leaf Spring
- Suspension Type - Rear: Semi-Elliptical Multi-Leaf Spring
- Spring Capacity - Front: 6830
- Spring Capacity - Rear: 12900
- Axle Type - Front: Reverse Elliot I-Beam
- Axle Type - Rear: Full-Floating
- Axle Capacity - Front: 6830
- Axle Capacity - Rear: 11020
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 4.10
- Shock Absorber Diameter - Front: 42.0
- Shock Absorber Diameter - Rear: 42.0
- Stabilizer Bar Diameter - Front: 1.65
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: 2TC
- Rear Tire Order Code: 3TC
- Spare Tire Order Code:
- Front Tire Size: 225/70R19.5
- Rear Tire Size: 225/70R19.5
- Spare Tire Size:
- Front Tire Capacity: 6630
- Rear Tire Capacity: 12460
- Spare Tire Capacity:
- Revolutions/Mile @ 45 mph - Front: 643
- Revolutions/Mile @ 45 mph - Rear: 643
- Revolutions/Mile @ 45 mph - Spare:
- Front Wheel Size: 19.5 x 6.0
- Rear Wheel Size: 19.5 x 6.0
- Spare Wheel Size:
- Front Wheel Offset: 127
- Rear Wheel Offset: 127
- Spare Wheel Offset:
- # of Bolt Holes - Front: 6
- # of Bolt Holes - Rear: 6
- # of Bolt Holes - Spare:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 18.8 - 20.9
- Steering Ratio (:1), At Lock: 18.8 - 20.9
- Turning Diameter - Curb to Curb: 51.9
- Turning Diameter - Wall to Wall: 58.0
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 11.5 x - TBD -
- Rear Brake Rotor Diam x Thickness: - TBD -
- Drum - Front (Yes or ):
- Front Drum Diam x Width:
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 38.6
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Frame Rail
- Aux Fuel Tank Location:
- Front Head Room: 38.40
- Front Leg Room: 29.50
- Front Shoulder Room: 70.70
- Front Hip Room: 67.70
- Wheelbase: 176
- Length, Overall: 267.5
- Width, Max w/o mirrors: 81.3
- Height, Overall: 90.9
- Overhang, Front: 48.4
- Overhang, Rear w/o bumper: 43.1
- Front Bumper to Back of Cab: 70.9
- Cab to Axle: 153.5
- Cab to End of Frame: 196.6
- Ground to Top of Load Floor:
- Ground to Top of Frame: 33.0
- Frame Width, Rear: 33.5
- Ground Clearance, Front: 8.3
- Ground Clearance, Rear: 8.3
- Front Frame Rating: - TBD -
- Seventh Gear Ratio (:1): - TBD -
- Eighth Gear Ratio (:1): - TBD -
- Ninth Gear Ratio (:1):
- Tenth Gear Ratio (:1):
- Eleventh Gear Ratio (:1):
- Twelfth Gear Ratio (:1):
- Thirteenth Gear Ratio (:1):
- Fourteenth Gear Ratio (:1):
- Fifteenth Gear Ratio (:1):
- Sixteenth Gear Ratio (:1):
- Seventeenth Gear Ratio (:1):
- Eighteenth Gear Ratio (:1):
- Nineteenth Gear Ratio (:1):
- Twentieth Gear Ratio (:1):
- Second Reverse Gear Ratio (:1):
- Third Reverse Gear Ratio (:1):
- Fourth Reverse Gear Ratio (:1):
- Fifth Reverse Gear Ratio (:1):
- Sixth Reverse Gear Ratio (:1):
- Body Weight (uncalculated): - TBD -
- Driver Weight: - TBD -
- Axle Ratio - Low Rear (:1):
- Driver Ratio: - TBD -
- Torque @ Clutch Engage: - TBD -
- Cab to Body: - TBD -
- Grade (%): - TBD -
- Frontal Area: - TBD -
- Governed Engine Speed (RPM):
- Torque Converter:
- Front Wheel Description Cont.:
- Rear Wheel Description Cont.:
- Spare Wheel Description Cont.:
- Static Loaded Radius: - TBD -
- Front Bolt Pattern: 6 Hole JIS 8.75"
- Rear Bolt Pattern: 6 Hole JIS 8.75"
- Spare Bolt Pattern:
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare:
- Transmission Manufacturer:
- Transmission Type:
- Engine Series: GMPT
- Body Length Default Value: - TBD -
- Engine Horsepower At RPM: 350 @ 4500
- Engine Horsepower At Max Speed RPM: - TBD -
- Max Speed For Gradeability: - TBD -
- Model Group: 4500
- Vehicle Segment: Chassis
- Vehicle Type: Standard Cab
- Engine Displacement Units: 6.6
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 2
- Country of Origin: United States N-Gas, F-Series and N-EV Incomplete vehicles
Details
- Preferred Equipment Group 1WT
- 19.5" x 6" Steel Wheels
- 38.6 Gallon/146 L Rectangular Fuel Tank
- Back-Up Alarm
- Mirror Bracket Extension

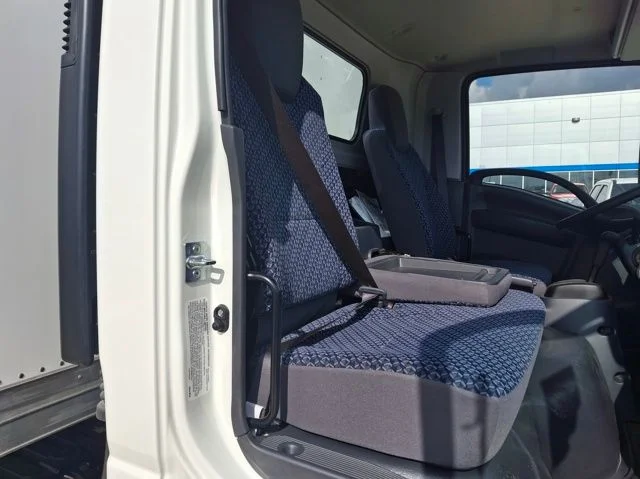

- High Back Front Bucket Seats
- Tricot Cloth Seat Trim
- Radio: AM/FM Stereo w/CD Player & Bluetooth
- Single-Zone Manual Air Conditioning
- Extra Set of Keys
- Rear Dome & Body Lamp Switch
- Remote Keyless Entry
- 2 Speakers Audio System Feature
- 4-Wheel Disc Brakes
- Air Conditioning
- Front Bucket Seats
- Front Center Armrest

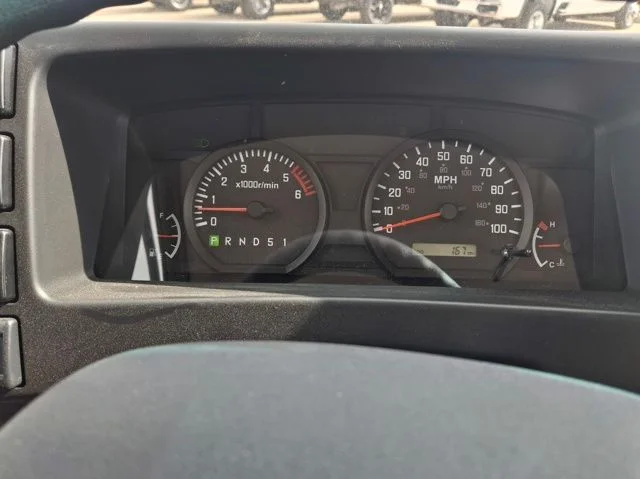

- Tachometer
- ABS brakes
- AM/FM radio
- Bumpers: body-color
- CD player
- Driver door bin
- Front anti-roll bar
- Overhead console
- Passenger door bin
- Power steering
- Power windows
- Speed control
- Telescoping steering wheel
- Tilt steering wheel
- Trip computer
- 2 Speakers
- Dual rear wheels
- Standard fuel economy fuel type: gasoline
- A/C
- ABS
- Rear Wheel Drive
- 8 Cylinder Engine
- Floor Mats
- Gasoline Fuel
- Daytime Running Lights
- Power Door Locks
- Running Boards/Side Steps
- Cloth Seats
- Bucket Seats
- Power Steering
- Adjustable Steering Wheel
- Tires - Front All-Season
- Tires - Rear All-Season
- Power Windows
- A/T
- Steel Wheels
- Bluetooth Connection
- 8-Speed A/T
- LED Headlights
