Pre-Owned 2023 Chevrolet Silverado 6500HD 1WT RWD 2D Standard Cab
- VIN: 1HTKHPVM0PH490234
- Stock: 52166
(27) Photos
/
Bayer Sales Price
$156,982
Details
Details Form Opened
Details
Used 2023 2023 Chevrolet Silverado 6500HD 1WT
VIN: 1HTKHPVM0PH490234STOCK: 52166History Report
View Your Free Report
Basic Info
-
Stock:52166
-
VIN:1HTKHPVM0PH490234
-
Exterior:White
-
Drivetrain:RWD
-
Interior:Dark Ash Seats With Jet Black Interior Accents
-
Transmission:6-Speed Automatic
-
Engine:Duramax 6.6L V8 Turbodiesel
-
Mileage:5
Key Features
-
Backup Camera
-
Interior Accents
Description
Summit White 2023 Chevrolet Silverado 6500HD 1WT RWD 6-Speed Automatic Duramax 6.6L V8 Turbodiesel ABS brakes, Electronic Stability Control, Traction control.
Call us directly at 1-844-695-6060! Delivery available upon request!
WE PUT CUSTOMERS FIRST!
Call us directly at 1-844-695-6060! Delivery available upon request!
WE PUT CUSTOMERS FIRST!
Vehicle Details
Exterior
- Spare tire delete
- Wheel, spare delete
- Bumper, front, Black
- Front fender extension, painted body color

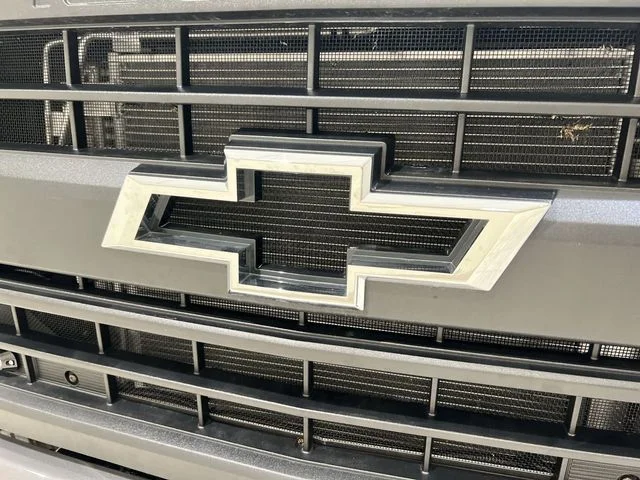

- Grille, base, molded in color, Black
- Grille guard screen, insect protection (mounted behind grille)
- Headlamps, halogen projector-beam
- Lamps, cargo area, cab mounted with switch on center switch bank
- Lamps, Smoked Amber roof marker
- Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
- Mirrors, outside high-visibility vertical camper-style, Black with manual folding and extension and lower convex spotter glass
- Glass, solar absorbing, tinted
- Antenna, fixed mast
- Door handles, Black

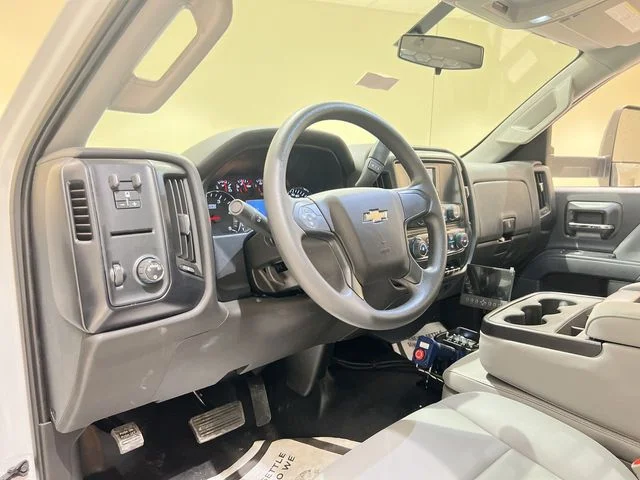

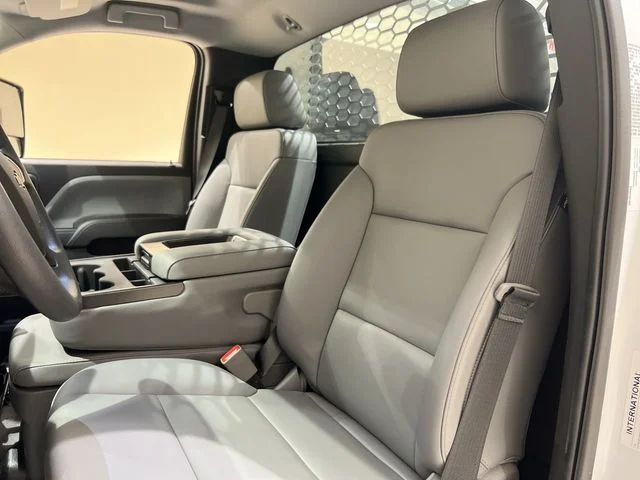

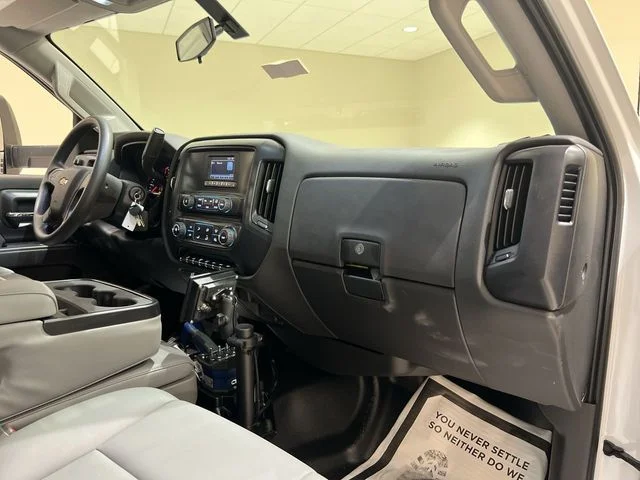

Interior
- Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
- Seat Belt, Black
- Floor covering, Graphite-colored rubberized-vinyl
- Steering wheel, urethane
- Steering column, manual Tilt-Wheel

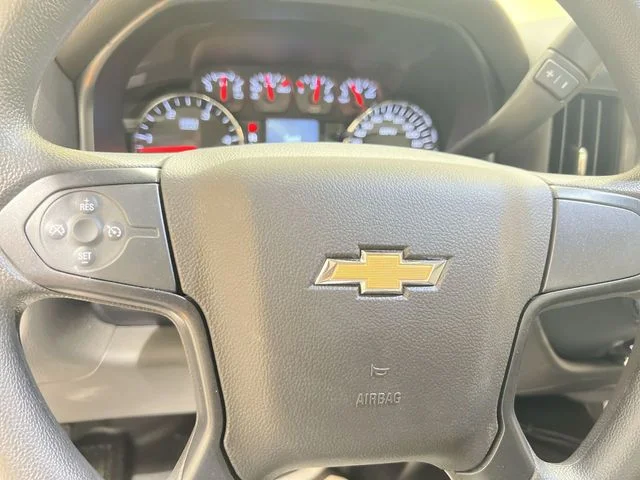

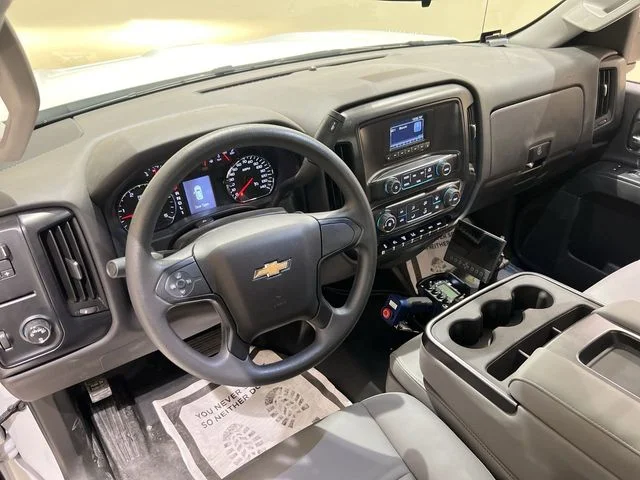

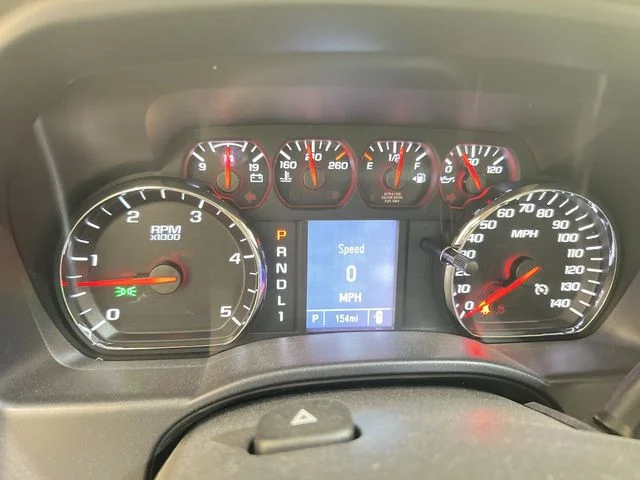

- Instrumentation, 6-gauge cluster featuring speedometer, fuel level, engine temperature, tachometer, voltage and oil pressure
- Speedometer, miles/kilometers
- Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
- Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel

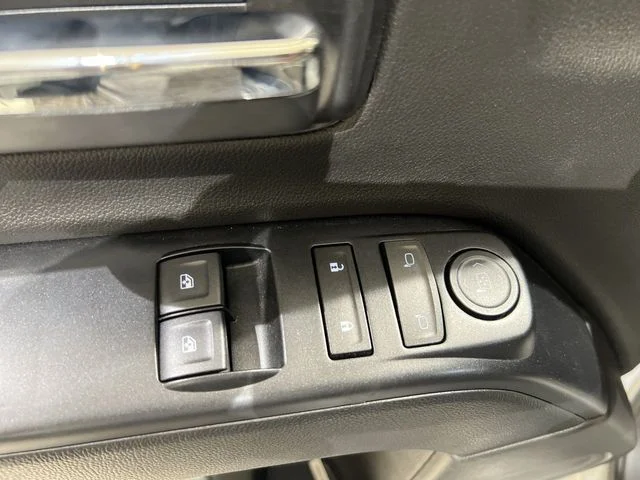

- Windows, manual driver and front passenger
- Cruise control, steering wheel-mounted
- Air conditioning, single-zone
- Mirror, inside rearview manual day/night
- Visors, driver and front passenger, vinyl
- Assist handle, front passenger and driver on A-pillars
Entertainment
- SiriusXM, delete

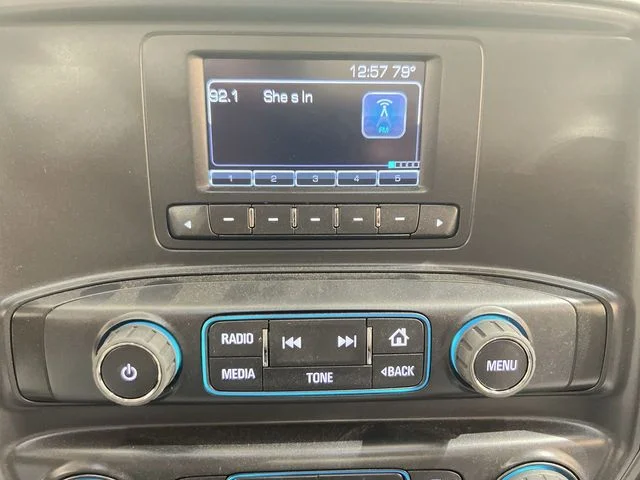

- Audio system feature, 4-speaker system
Mechanical
- Engine, Duramax 6.6L Turbo-Diesel V8, B20-Diesel compatible 350 hp @ 2700 rpm, 700 lb.-ft. torque @ 1600 rpm
- Rear axle, 4.10 ratio Max road speed: 79 MPH
- GVWR, 16,500 lb. (7484 kg) (Silverado 4500 HD 2WD Regular Cab models require one of the following combinations: (1) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and (GL4) 11k rear axle and (GR3) 11k rear suspension. (2) (FTC) 6.25k front axle and (FTW) 6.25k front suspension and one of the following rear axles: (HD2) 13.5k rear axle, (HD1) 15k rear axle or (J27) 15.5k rear axle and (GR4) 13.5k rear suspension. (3) (FTA) 7k front axle and (FK6) 7k front suspension and (FN1) 10k rear axle or (GL4) 11k rear axle and (GR3) 11k rear suspension or (G40) 12K Rear air suspension. (4) (FTA) 7k front axle and (FK6) 7k front suspension and (HD1) 15k rear axle or (J27) 15.5k rear axle and one of the following rear suspensions: (GR4) 13.5k rear suspension, (FU7) 15.5k rear suspension, (GP1) 13.5K rear air suspension, (GP8) 15.5k rear air suspension, (91B) 13.5k LiquidSpring prep single volume rear suspension, (91C) 13.5k LiquidSpring prep stacked volume rear suspension, (91D) 15.5k LiquidSpring prep single volume rear suspension or (91E) 15.5k LiquidSpring prep stacked volume rear suspension.)
- Wheelbase, 141" (358.1 cm), 60" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) exhaust. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension and/or (FU7) 15,500 lb. rear suspension. Not available with rear air suspensions or (91B), (91C), (91D) or (91E) prep for LiquidSpring rear suspension.)
- Front axle, 6,250 lb. (2,835 kg), Dana Spicer D800-N, "I"-beam, non-driving (Requires (FTW) 6,250 lb. front suspension. Includes (G68) rear shock absorbers. Not available with rear air suspensions.)
- Front suspension, 6,250 lb. (2,835 kg) multi-leaf, includes shock absorbers (Not available with rear air suspensions.)
- Rear axle, 11,000 lb. (4,999 kg) Dana Spicer S14-110, single reduction
- Rear suspension, 11,000 lb. (4,990 kg) multi-leaf, vari-rate (Not available with air suspension.)
- Emissions, USA 50 State certified
- Neutral-at-Stop Automatic transmission shifts to neutral when the service brake is depressed while the vehicle is at a complete stop, and remains in neutral until the service brake is released
- Transmission shift control calibration, fuel sense Performance
- Rear wheel drive
- Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
- Alternator, 150 amps
- Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
- Trailer brake controller, integrated
- Incomplete vehicle
- Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165", (ER2) 189" or (FQT) 141". Not available with (G40), (GP1) or (GP8) rear air suspension.)
- Axle, Open rear axle, non-locking rear
- Axle lubricant, rear, synthetic oil EmGard FE -75W-90
- Shock Absorbers, rear (Included with (FTC) 6,250 lb. front axle.)
- Steering, power (Bosch S2 8014 Plus)
- Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
- Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
- Fuel, diesel B20
- Capped Fuel Fill
- Exhaust system, right side exit, behind rear wheels (Requires (FQT) 141" wheelbase.)
- Exhaust brake
Safety
- Brake, parking, driveline park brake system
- Daytime Running Lamps, with automatic exterior lamp control
- OnStar, delete

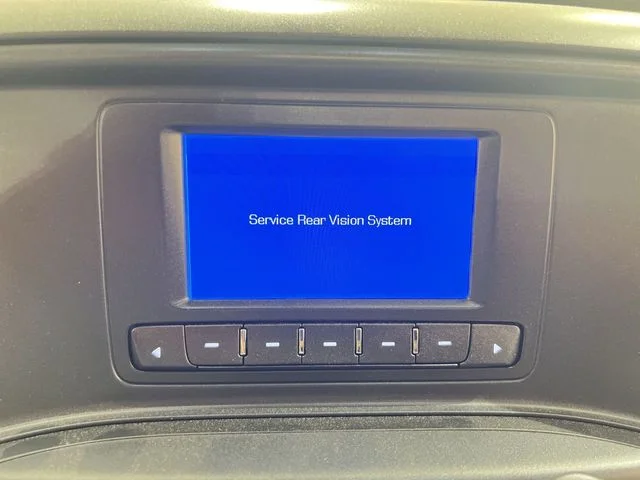

- Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
- Horn, single-note
Tech Specs
- Vehicle Name: Chevrolet Silverado MD
- Body Style: Regular Cab Chassis Cab
- Body Code:
- Drivetrain: Rear Wheel Drive
- Passenger Capacity: 3
- Number of Passenger Doors: 2
- Gross Axle Wt Rating - Front: 6250
- Gross Axle Wt Rating - Rear: 11000
- Curb Weight - Front: 4704
- Curb Weight - Rear: 2803
- Gross Vehicle Weight Rating Cap: 16500
- Gross Combined Wt Rating: 26000
- Engine Order Code: L5D
- Engine Type: Turbocharged Diesel V8
- Displacement: 6.6L/402
- Fuel System: Direct Injection
- SAE Net Horsepower @ RPM: 350 @ 2700
- SAE Net Torque @ RPM: 700 @ 1600
- Trans Order Code: MWA
- Trans Type: 6
- Trans Description Cont.: Automatic
- Trans Description Cont. Again:
- First Gear Ratio (:1): 3.10
- Second Gear Ratio (:1): 1.80
- Third Gear Ratio (:1): 1.40
- Fourth Gear Ratio (:1): 1.00
- Fifth Gear Ratio (:1): 0.70
- Sixth Gear Ratio (:1): 0.61
- Seventh Gear Ratio (:1):
- Reverse Ratio (:1): - TBD -
- Clutch Size: N/A
- Trans Power Take Off:
- Trans PTO Access:
- Transfer Case Model:
- Transfer Case Gear Ratio (:1), High:
- Transfer Case Gear Ratio (:1), Low:
- Transfer Case Power Take Off:
- Cold Cranking Amps @ 0° F (Primary): 1100
- Cold Cranking Amps @ 0° F (2nd): 1100
- Cold Cranking Amps @ 0° F (3rd):
- Maximum Alternator Capacity (amps): 150
- Maximum Alternator Watts: - TBD -
- Total Cooling System Capacity: 48
- Engine Oil Cooler: Yes
- Frame Type: High Strength Low Alloy Steel
- Sect Modulus Rails Only: 8.08 Front/10.93 Belly/8.47 Rear
- Frame RBM: 404000 Front/546500 Belly/423500 Rear
- Frame Strength: 50000
- Frame Thickness: 0.3125
- Suspension Type - Front: Multi-Leaf
- Suspension Type - Rear: Multi-Leaf
- Spring Capacity - Front: 6250
- Spring Capacity - Rear: 11000
- Axle Type - Front: Dana Spicer I-Beam
- Axle Type - Rear: Dana Spicer Single Reduction
- Axle Capacity - Front: 6250
- Axle Capacity - Rear: 11000
- Axle Ratio (:1) - Front:
- Axle Ratio (:1) - Rear: 4.10
- Shock Absorber Diameter - Front: 50.8
- Shock Absorber Diameter - Rear:
- Stabilizer Bar Diameter - Front:
- Stabilizer Bar Diameter - Rear:
- Front Tire Order Code: XEY
- Rear Tire Order Code: YEY
- Spare Tire Order Code:

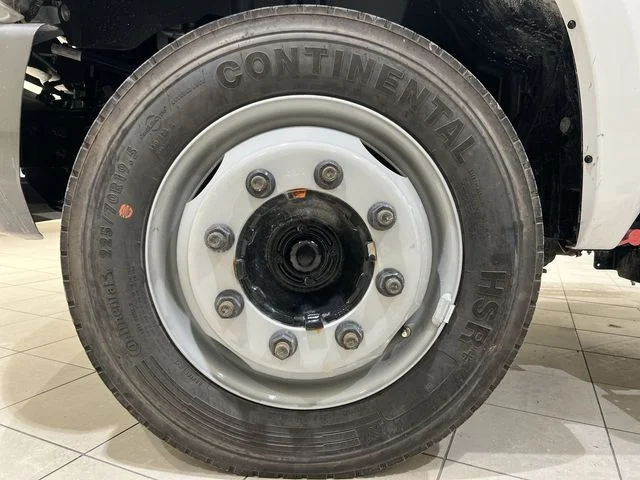

- Front Tire Size: 225/70R19.5G
- Rear Tire Size: 225/70R19.5G
- Spare Tire Size:
- Front Tire Capacity: 7940
- Rear Tire Capacity: 15000
- Spare Tire Capacity:
- Revolutions/Mile @ 45 mph - Front: - TBD -
- Revolutions/Mile @ 45 mph - Rear: - TBD -
- Revolutions/Mile @ 45 mph - Spare:
- Front Wheel Size: 19.5 x 6.75
- Rear Wheel Size: 19.5 x 6.75
- Spare Wheel Size:
- Front Wheel Offset: - TBD -
- Rear Wheel Offset: - TBD -
- Spare Wheel Offset:
- # of Bolt Holes - Front: 8
- # of Bolt Holes - Rear: 8
- # of Bolt Holes - Spare:
- Front Wheel Material: Steel
- Rear Wheel Material: Steel
- Spare Wheel Material:
- Steering Type: Pwr
- Steering Ratio (:1), On Center: 16.6
- Steering Ratio (:1), At Lock: 19.6
- Turning Diameter - Curb to Curb: 41.2
- Turning Diameter - Wall to Wall: 42.8
- Brake Type: Pwr
- Brake ABS System: 4-Wheel
- Brake ABS System (Second Line):
- Disc - Front (Yes or ): Yes
- Disc - Rear (Yes or ): Yes
- Front Brake Rotor Diam x Thickness: 15.375 x 1.54
- Rear Brake Rotor Diam x Thickness: 15.375 x 1.54
- Drum - Front (Yes or ):
- Front Drum Diam x Width:
- Drum - Rear (Yes or ):
- Rear Drum Diam x Width:
- Fuel Tank Capacity, Approx: 40
- Aux Fuel Tank Capacity, Approx:
- Fuel Tank Location: Behind Rear Axle
- Aux Fuel Tank Location:
- Front Head Room: 42.8
- Front Leg Room: 45.28
- Front Shoulder Room: 66.02
- Front Hip Room: 60.75
- Wheelbase: 141
- Length, Overall: 224.4
- Width, Max w/o mirrors: 92.7
- Height, Overall: 82.95
- Overhang, Front: 34.4
- Overhang, Rear w/o bumper: 49
- Front Bumper to Back of Cab: 115.47
- Cab to Axle: 59.84
- Cab to End of Frame: 109.1
- Ground to Top of Load Floor:
- Ground to Top of Frame: - TBD -
- Frame Width, Rear: 34.1
- Ground Clearance, Front: - TBD -
- Ground Clearance, Rear: - TBD -
- Front Frame Rating: - TBD -
- Eighth Gear Ratio (:1):
- Ninth Gear Ratio (:1):
- Tenth Gear Ratio (:1):
- Eleventh Gear Ratio (:1):
- Twelfth Gear Ratio (:1):
- Thirteenth Gear Ratio (:1):
- Fourteenth Gear Ratio (:1):
- Fifteenth Gear Ratio (:1):
- Sixteenth Gear Ratio (:1):
- Seventeenth Gear Ratio (:1):
- Eighteenth Gear Ratio (:1):
- Nineteenth Gear Ratio (:1):
- Twentieth Gear Ratio (:1):
- Second Reverse Gear Ratio (:1):
- Third Reverse Gear Ratio (:1):
- Fourth Reverse Gear Ratio (:1):
- Fifth Reverse Gear Ratio (:1):
- Sixth Reverse Gear Ratio (:1):
- Body Weight (uncalculated):
- Driver Weight: 350
- Axle Ratio - Low Rear (:1):
- Driver Ratio: 1
- Torque @ Clutch Engage: - TBD -
- Cab to Body: 3
- Grade (%): 2
- Frontal Area:
- Governed Engine Speed (RPM): 2900
- Torque Converter: 1.764
- Front Wheel Description Cont.:
- Rear Wheel Description Cont.:
- Spare Wheel Description Cont.:
- Static Loaded Radius: - TBD -
- Front Bolt Pattern: 8 Hole JIS 10.83"
- Rear Bolt Pattern: 8 Hole JIS 10.83"
- Spare Bolt Pattern:
- Number Of Tires Front: 2
- Number Of Tires Rear: 4
- Number Of Tires Spare: 0
- Transmission Manufacturer: Allison
- Transmission Type: A1700HS Allison
- Engine Series: Duramax
- Body Length Default Value:
- Engine Horsepower At RPM:
- Engine Horsepower At Max Speed RPM:
- Max Speed For Gradeability: 79
- Model Group: Silverado MD
- Vehicle Segment: Chassis
- Vehicle Type: Standard Cab
- Engine Displacement Units: 6.6
- Engine Camshaft: OHV
- Engine Block Type: iron
- Engine Cylinder Count: 8
- Engine Valve Count: 4
- Country of Origin: United States Truck - Incomplete Vehicle
